1 2 3 4 5 6 7 8 | channels: - conda-forge dependencies: - appmode - numpy - scipy - ipywidgets - matplotlib |
1 | [](https://mybinder.org/v2/gh/varioustoxins/fft_demos/HEAD) |
1 | [](https://mybinder.org/v2/gh/varioustoxins/fft_demos/HEAD?urlpath=apps%2Ffft_window.ipynb) |
NEF (NMR Exchange Format1) files have headers (one per file) that define which programs wrote the file and it’s history. However, there are a few things that are not clear
Here’s the header
save_nef_nmr_meta_data
_nef_nmr_meta_data.sf_category nef_nmr_meta_data
_nef_nmr_meta_data.sf_framecode nef_nmr_meta_data
_nef_nmr_meta_data.format_name nmr_exchange_format
_nef_nmr_meta_data.format_version 1.1
_nef_nmr_meta_data.program_name NEFPipelines
_nef_nmr_meta_data.program_version 0.0.1
_nef_nmr_meta_data.creation_date 2021-06-19T17:36:39.073848
_nef_nmr_meta_data.uuid NEFPipelines-2021-06-19T17:36:39.073848-9006508160
loop_
_nef_run_history.run_number
_nef_run_history.program_name
_nef_run_history.program_version
_nef_run_history.script_name
1 NEFPipelines 0.0.1 header.py
stop_
save_
Please note firstly the entries sf_category and sf_framecode these are mandetory for the frame to be recognised.
The first frame that that isn’t clear in its format is _nef_nmr_meta_data.creation_date, however this appears to be a isoformat date time, and the mostr reasonable decision is that this is a UTC 2 date time as there is no time zone information and this is unique worldwide. The simple way yom ake this in python is
from datetime import datetime
utc_date_time = datetime.now().isoformat()
The second question is what is the _nef_nmr_meta_data.uuid tag? This is a UUID3 which uniquely identifies this version of the file apart form any other4. This has the form: NEFPipelines-2021-06-19T17:36:39.073848-9006508160. The first part is obvious its our programmes name and the second part is the current time. However, whats the third part 9006508160 well its just a 10 digit random number to ensure that the uuid is unique (think of creating the file at the same time on multiple threads…without the random number they would all have the same Universally Unique Identifier!
from random import randint
from datetime import datetime
utc_date_time = datetime.now().isoformat()
random_value = ''.join(["{}".format(randint(0, 9)) for num in range(10)])
uuid = f'NEFPipelines-{utc_date_time}-{random_value}'
Finally there is the loop
loop_
_nef_run_history.run_number
_nef_run_history.program_name
_nef_run_history.program_version
_nef_run_history.script_name
1 NEFPipelines 0.0.1 header.p
stop_
This just lists the programs that have editied the file in order… lastest to oldest.
So a complete header would be
data_new
save_nef_nmr_meta_data
_nef_nmr_meta_data.sf_category nef_nmr_meta_data
_nef_nmr_meta_data.sf_framecode nef_nmr_meta_data
_nef_nmr_meta_data.format_name nmr_exchange_format
_nef_nmr_meta_data.format_version 1.1
_nef_nmr_meta_data.program_name NEFPipelines
_nef_nmr_meta_data.program_version 0.0.1
_nef_nmr_meta_data.creation_date 2021-06-19T17:36:39.073848
_nef_nmr_meta_data.uuid NEFPipelines-2021-06-19T17:36:39.073848-9006508160
loop_
_nef_run_history.run_number
_nef_run_history.program_name
_nef_run_history.program_version
_nef_run_history.script_name
1 NEFPipelines 0.0.1 header.p
stop_
...
Oh and one last thing, this header should be renewed each time a program reads and modifies the file, so new program names, dates, and uuid, plus an extra line in the_nef_run_history loop.
NMR Exchange Format a unified and open standard for representation of NMR restraint data. ↩︎
Universal coodinated time the worlds primary time standard and the effective successor of Greenewich Mean Tim (GMT). ↩︎
UUIDs are Universally Unique Identifiers ↩︎
you could use a hash but then you would need to know what the hash of the file is before the file is complete, and adding the hash to the file would change the value of the files hash… ↩︎
From two of these definitions we could say a generative program is program that literaly gives birth to another program. So a generative programme at it's simplest its using one computer program to write another program which you then run. Thought you might think this sounds complicated and esoteric its quite often quite a useful technique that allows us to control other programs, decouple one program from another and run complex processes. In actual fact most programmers should be aware of the process as it is fundamental to how programs are built. For example when we write program in a compiled programming language we use another program, the compiler, to transform text into another file, the executable that we then run. In the case of python which is compiled and interpreted the interpreter coverts a python file <file>.py into a byte code file <file>.pyc which is then read and used to run the python interpreter. This avoids having to recompile each time the script is run if there is no change in the text of the .py file.

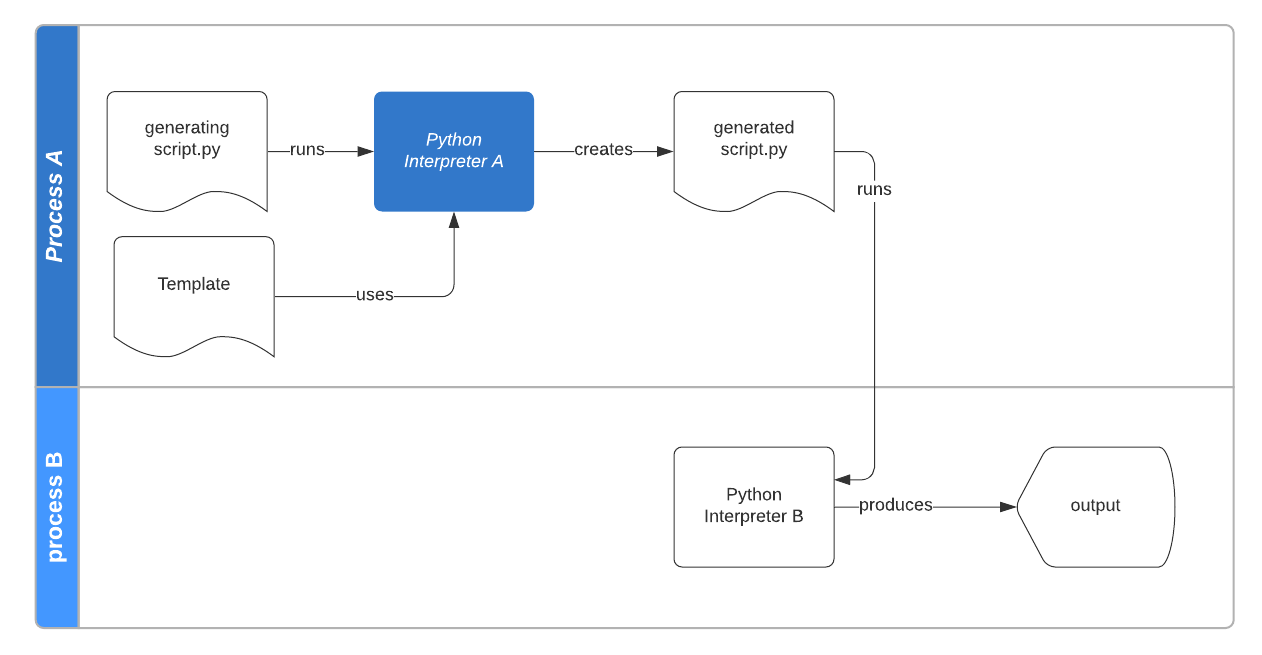

The picture below shows you the general case for two python interpreters. Python interpreter A takes a template and uses it along with some programming logic in the script generating_script.py to produce generated_script.py. The script generated_script.py is then run and by interpreter B to produce some output.
So how would we do this in a simple python program, in this case one that produces a csh script? The easiest way is with strings, dictionaries and templates. Consider this python program.
Python-[template.py]:------------------------------------------------
#!/bin/python
template = '''
#!/bin/csh
echo the template parameter a was %(a)s
'''
parameters {'a' : 'wibble'}
text = template % parameters
with open ('my_script.csh','w') as file_handle:
file_handle.write(text)
---------------------------------------------------------:EndPython
Here we create a string template in a variable called template and a dictionary of replacement text to go into the string template called parameters. We then combine the two using the % operator which replaces %(a)s in the template with the value defined by the string "a" in the dictionary parameters (value "wibble") giving us the final text which is then written to my_script.csh.
Csh-[my_script.csh]:-------------------------------------------------
#!/bin/csh
echo the template parameter a was wibble
--------------------------------------------------------------:EndCsh
Now if we now run myscript.csh by typing
csh my_script.csh
we get the following printed on the terminal
the template parameter a was wibble
Of course the generated program can be quite flexible, for example we could write a program that reads parameters from a file or command line and will do different things depending on what is in the file or command line, or even more esoteric things such as the status of a device or web page. Consider the following more complicated case from the real world, a toy implementation of the process used to generate a psf file (protein structure file) in the program ARIA which generates protein structures from NMR data. In this case we will reconsidering what would happen if ARIA used xplor-nih as it's structure generation program (currently it uses CNS or Yasara).
Multiple steps occur (note we are using a simplified version of how things work to make it clearer)
First ARIA reads a project file that kicks the whole process off. Then
1. ARIA writes a template pdb file which contains sequence data but no useable coordinates (all coordinates are 0.000 0.000 0.000). This is provided in this example in test_templates/data/sequence/hrdc.pdb
2. Aria writes run.json, this file contains parameters for all fixed data used by ARIA during multiple stages of calculation (structure generation and multiple rounds of structure calculation). An example would be something like
Json-[run.json]:-----------------------------------------------------
{
"data": {
"pdb_or_sequence": "PDB",
"initial_pdb" : "/Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates/data/sequence/hrdc.pdb",
"initial_seq" : "/Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates/data/hrdc.seq",
"filenames" : {
"project_root" : "/Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates",
"xplor_root" : "/Users/gst9/programs/xplor-nih/2.51",
"file_root" : "hrdc"
}
}
}-------------------------------------------------------------:EndJson
Note this contains all the information about where files can be found and where results should be put.
3. Aria generates a driver csh script that's going to run the structure generation engine xplor-nih using the python make_generate_template.py.
Python-[make_generate_template.py]:----------------------------------
import json
import sys
#1.a assume we are in generate_template as working directory
with open('run.json') as fh:
json_data = json.load(fh)
project_root = json_data['data']['filenames']['project_root']
tmp_dir = project_root + '/tmp'
output_dr = tmp_dir + 'generate_template'
py_xplor = json_data['data']['filenames']['xplor_root'] + '/' + 'bin/pyXplor'
data = {
"py_xplor" : py_xplor,
"tmp_dir" : tmp_dir,
"project_root" : project_root,
}
template = """
# SGE facility
#$ -N generate_template
#$ -S /bin/csh
## results will be stored here
setenv NEWIT ./
## project path
setenv RUN %(project_root)s
## individual run.cns is stored here
setenv RUN_CNS %(tmp_dir)s
## CNS working directory
cd ${RUN_CNS}/generate_template
## solves some NFS sync problems
cat %(project_root)s/protocols/generate_template.py > /dev/null
## command line
%(py_xplor)s %(project_root)s/protocols/generate_template.py >! generate_template.out
touch done
""" % data
with open ('generate_template.csh', 'w') as out_file:
out_file.write(template)
-----------------------------------------------------------:EndPython
Again in our case we are going to pull parameters from run.json, though in reality the data is pulled from ARIA internal data structures (effectively the the file run1.xml and data distributed with the program such as forcefields) The script is parameterised by
4. Aria runs generate_template.csh, which changes to the directory <project_root>/tmp/ generate_template finds the xplor-nih instance on the computer from <data.filenames.xplor_root>, and runs generate_template.py (which now gets its os.getcwd() as <project_root>/tmp/generate_template because generate_template.csh has changed to this directory using cd
Csh-[generate_template.csh]:-----------------------------------------
# SGE facility
#$ -N generate_template
#$ -S /bin/csh
## results will be stored here
setenv NEWIT ./
## project path
setenv RUN /Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates
## individual run.cns is stored here
setenv RUN_CNS /Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates/tmp
## CNS working directory
cd ${RUN_CNS}/generate_template
## solves some NFS sync problems
cat /Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates/protocols/generate_template.py > /dev/null
## command line
/Users/gst9/programs/xplor-nih/2.51/bin/pyXplor /Users/gst9/Dropbox/git/ariaxc/ariaxc/tests/test_templates/protocols/generate_template.py >! generate_template.out
touch done
--------------------------------------------------------------:EndCsh
5. protocols/generate_template.py is run and reads run.json and makes the following decisions on how to run based on the data read. it knows where to find run.json because it is in the pwd retrieved using os.getcwd() (remember the pwd was set by generate_template.csh and is inherited from this parent process)
import json
import os
import subprocess
# 0. lets grab the starting directory froom the command line
root_directory = os.getcwd()
print(os.getcwd())
#1.a
with open(root_directory + '/' + 'run.json') as fh:
json_data = json.load(fh)
#1.b
pdb_or_sequence = json_data['data']['pdb_or_sequence']
xplor_root = json_data['data']['filenames']['xplor_root']
out_dir = json_data['data']['filenames']['project_root'] + '/xplor/begin'
psf_file_name = out_dir + '/' + json_data['data']['filenames']['file_root'] + '.psf'
#2 uses seq2psf or pdb2psf to create a psf file <fileroot>.psf in the begin directory in project_root
if pdb_or_sequence == 'PDB':
pdb_file = json_data['data']['initial_pdb']
pdb2psf = xplor_root + '/bin/pdb2psf'
subprocess.call([pdb2psf, pdb_file, '-outfile', psf_file_name])
elif pdb_or_sequence == 'SEQ':
sequence_file = json_data['data']['initial_sequence']
seq2psf = xplor_root + '/bin/seq2psf'
subprocess.call([seq2psf, sequence_file, '-outfile', psf_file_name])
else:
raise Exception('unexpected choise for sequence source file %(pdb_or_sequence)s' % {'pdb_or_sequence' : pdb_or_sequence})
--------------------------------------------------------------:Python
Diversity
So why the excitement? Well I don't think its the bling, its the fact that there is a faster more versatile version of the platform that I use for so many things. You see it used to be that I used to have a range of strategies for editing and dealing with the heterogeneous data and programming languages that I use.
Can we say nedit, Komodo, IntelliJ IDEA, wing etc. Most of them were open source thought I must admit I used IntelliJ IDEA (and damn good it was too [eclipse still isn't as polished but is more versatile and open]). However, now I have one tool suite that allows me to deal with most of these at the same time within the same editing environment, so I have less things to remember less windows to find on my desktop and more support for what I am doing there's more...
Community & Open Source
I have found the eclipse community (and especially the emf mailing list http://www.eclipse.org/newsportal/thread.php?group=eclipse.tools.emf and especially Ed Merks) to be quite wonderful. Dealing with a newbie, who makes quite few mistakes and still being friendly helpful and authoritative all at the same time is a wonderful skill.
Having an open source platform has also been a vital asset so on the project I have been working on. For example how do I replace <%packageA.packageB.Class%> with the correct declaration in a custom jet template? Go look at the source code ;-) (though it would be even nicer if I could go and look at the javadoc!) (see the getBody function). So another one of my answers is its the whole, not the trees.
In conclusion Where else could I have work flow that goes python->model-> java all in the same environment, with such ease?
